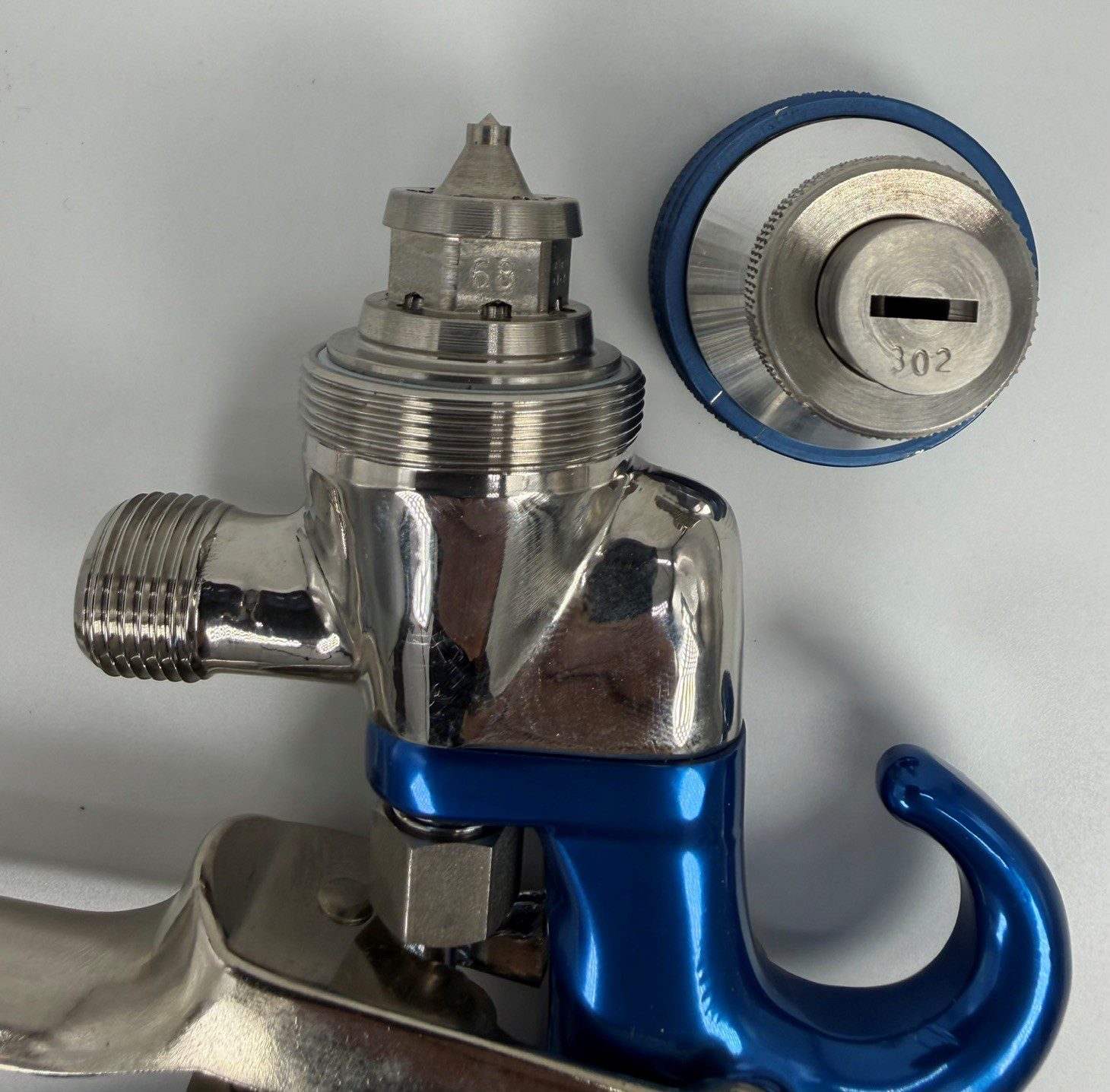

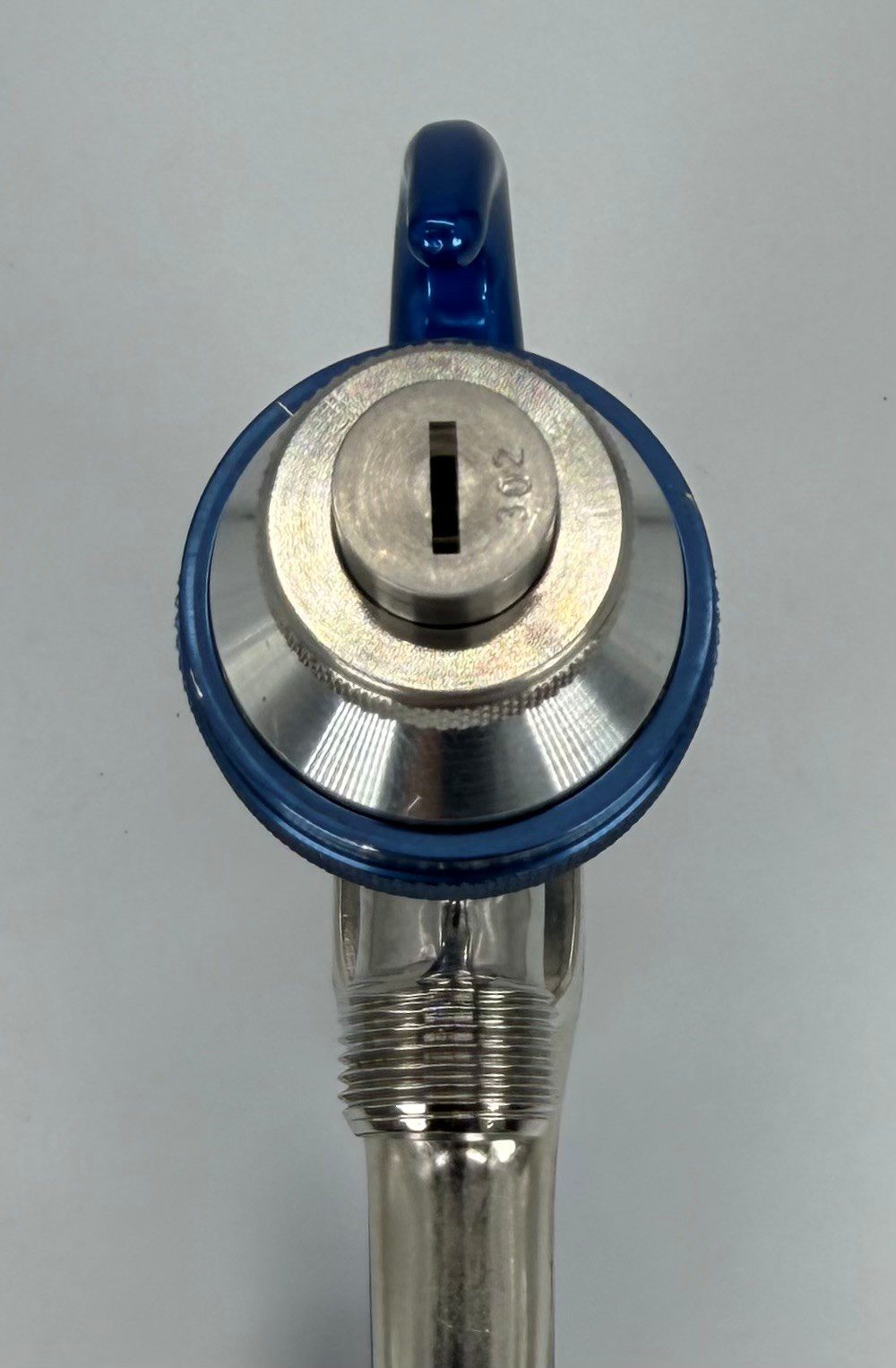

Binks 6302-5130-2 Model 7N Internal Mix FRP Spray Gun, 68SS Fluid Nozzle x 302 Air Nozzle
Original price was: $1,995.00.$1,795.00Current price is: $1,795.00.
Description

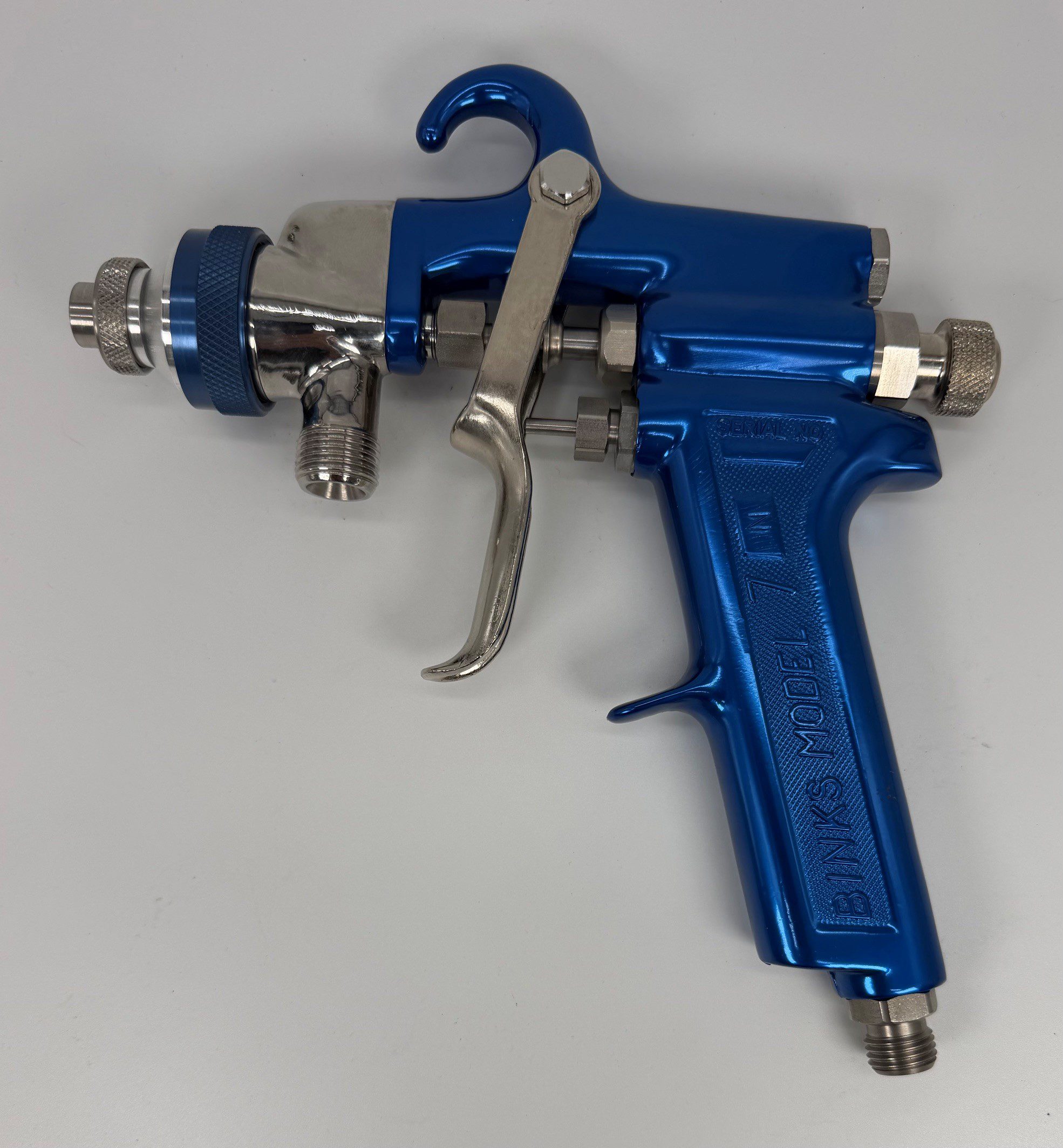

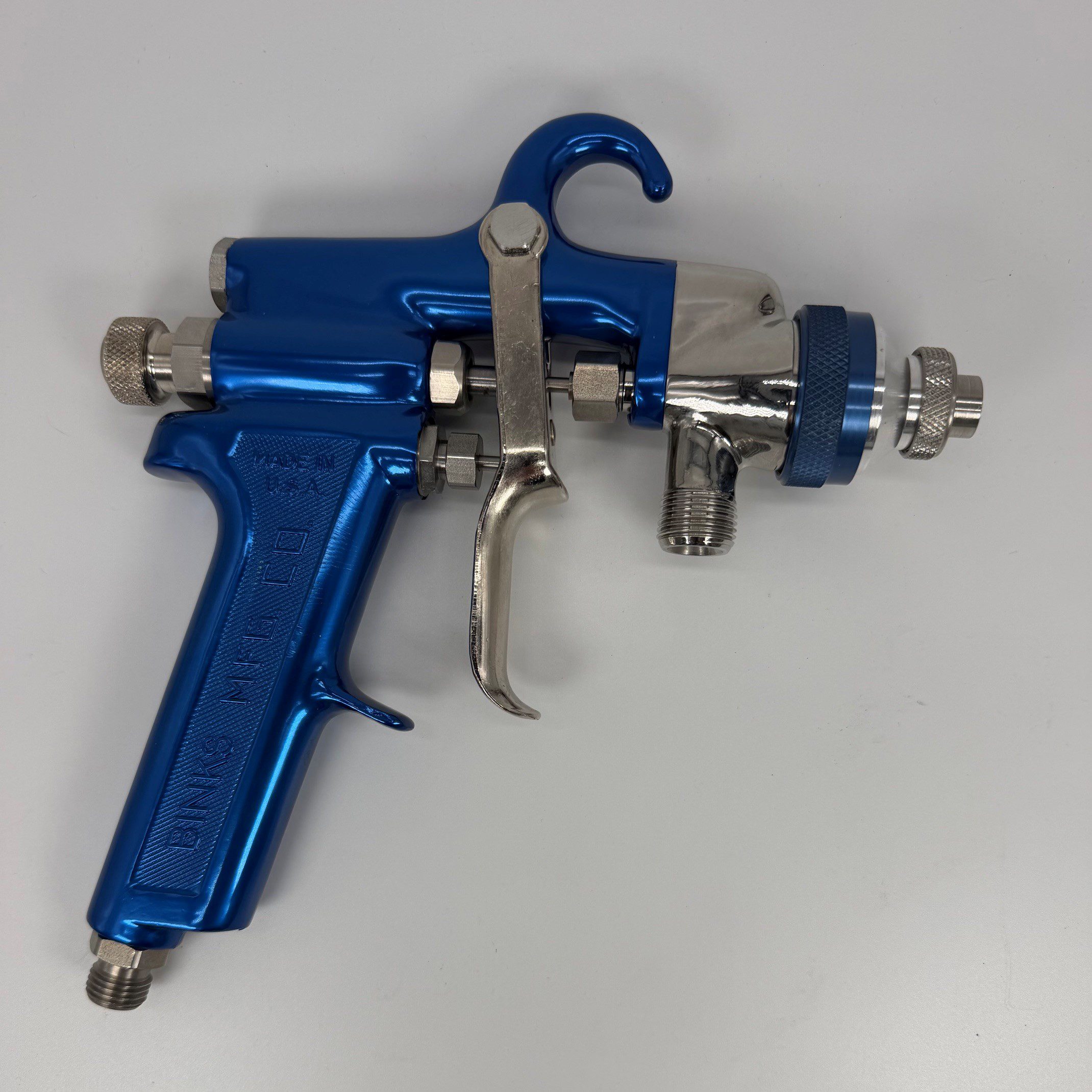

The Binks Model 7N Gun is a rugged, light weight, hand-held Spray Gun, for applying Gel-Coats and polyester resins.
Catalyst is introduced to the material stream through the atomizing air as the resin, or Gel-Coat, flows from the Material Nozzle.
Flow rate of the Gun varies up to 2 GPM, depending on nozzle selection. The actual fluid output is controlled by
nozzle orifice size and fluid pressure.
Spray patterns are determined by the nozzle selection and vary somewhat depending on size, angle, nozzle orifice and output. External mix nozzle pattern cannot be changed because this gun does not have a side port control. However, its spray fan pattern can be rotated through 360°, by loosening the Retaining Ring, and rotating the Nozzle Body.

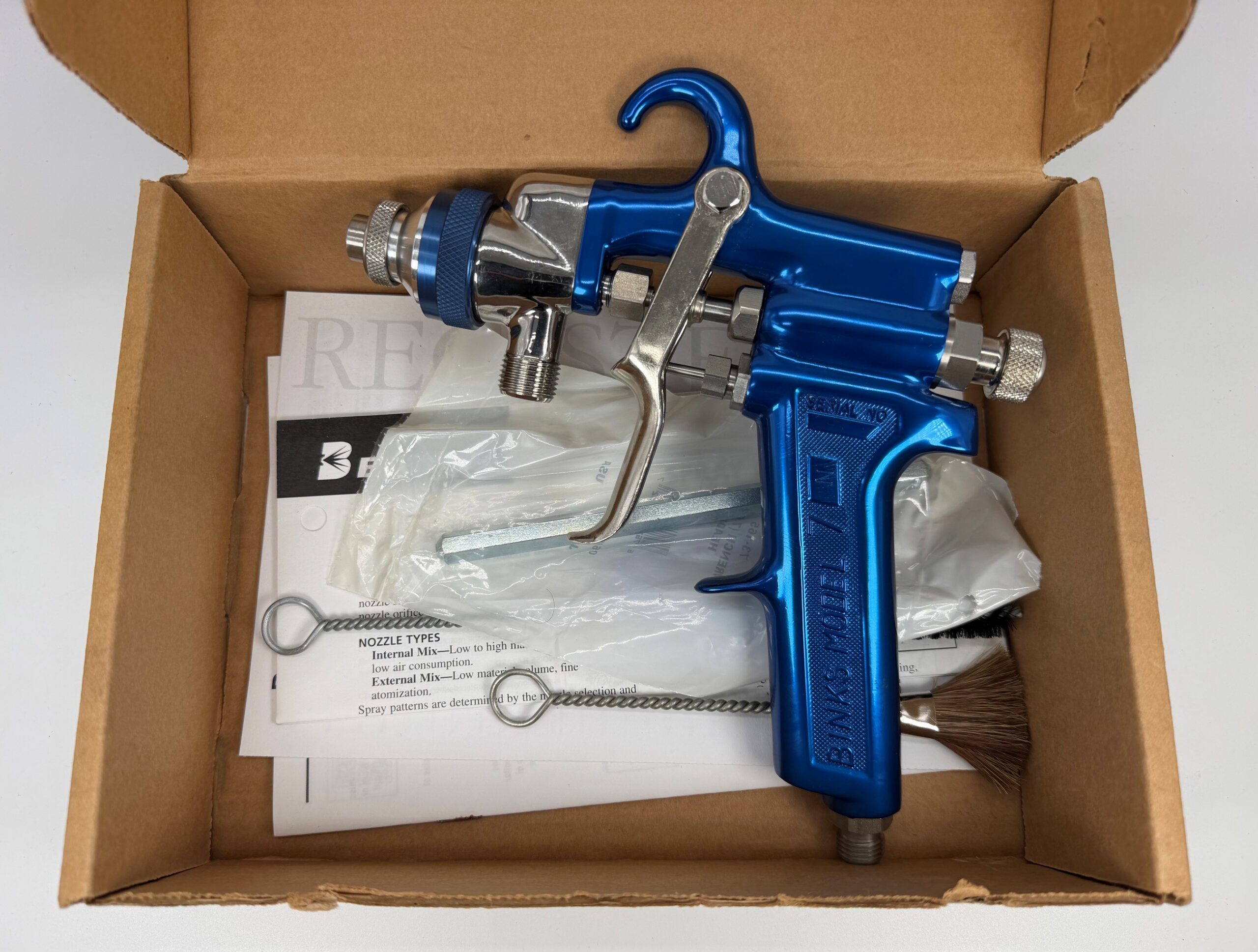

Includes gun wrench, cleaning brushes and Part Sheet Manuals.
Additional information
| Weight | 3 lbs |
|---|---|
| Dimensions | 10 × 7 × 3 in |
| Brand | Binks |
| Model | 102-3610 External Mix "Century LEL" Spray Gun |
| MPN | 102-3610 |
| Condition | New |
| Maximum Working Pressure (Resin/Gel Coat) | 3500 psi (241 bar) |
| Maximum Working Pressure (Catalyst) | 100 psi (7 bar) |
| Maximum Working Pressure (Air) | 100 psi (7 bar) |
| Catalyst Inlet | 1/4" NPS (m) |
| Chopper Air Inlet | 1/4" NPS (m) |
| Air Assist Inlet | 1/4" NPS (m) / 1/4" NPT (m) |
| Resin Inlet | 1/4" NPS (m) (102-3600, 102-3610), 3/8" NPS (m) (102-3650) |
