AIE Bullhorn Portable Binks “Century” 5 Gallon Pail Gel-Coat System
Description
- Century “LEL” (Low Emission Laminator) high efficiency external mix Gel-Coat gun and Nozzle Tip
- Binks Stainless Steel 17:1 Heavy-Duty Gel-Coat Pump
- AX Air Motor with patented magnetic detent spool valve for quick switchover
- Air motor to fluid section quick-disconnect coupling
- Gel-Coat Outlet Filter & Pulsation Chamber with Self-Contained Pressure Drain System
- 316 Stainless-Steel Heavy-Duty Catalyst Slave Pump with adjustable wear packings. Solid, stepped displacement rod with stationary packings
- Catalyst Manifold Assembly with Stainless Steel Pressure Gauge & Pressure Relief Valve
- System Air Regulators, Air Filter, Gauges, and Valves
- 5-Gallon Siphon Kit
- 5-Gallon Pail Holder
- Choice of 25′ or 50′ spray gun hoses

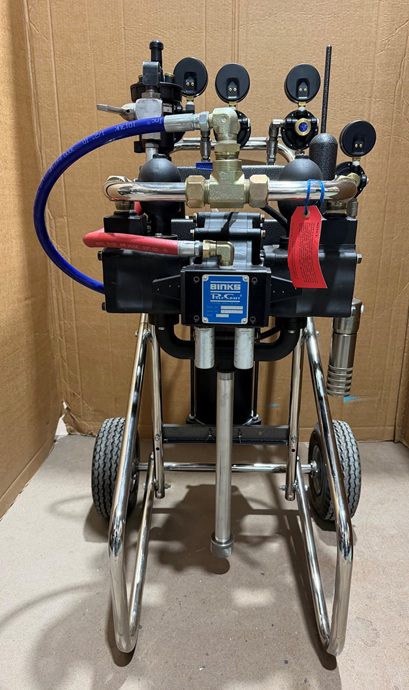

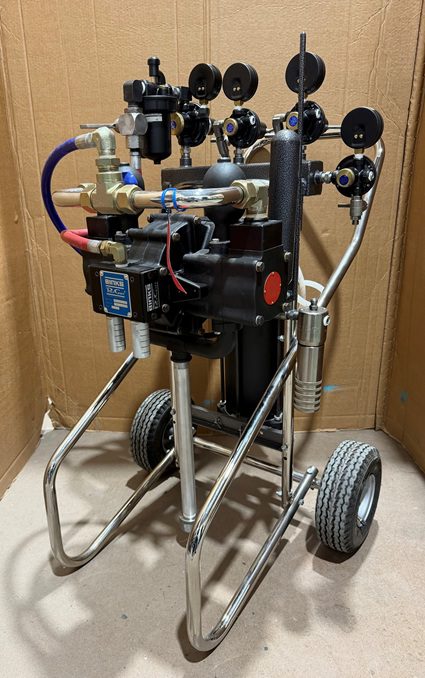

- Above mounted on 4-wheel portable cart with convenient bullhorn handles/hose storage rack
Optional: Catalyst Flowmeter Assembly with Stainless Steel Gauge (Recommended)
Additional information
| Weight | 300 lbs |
|---|---|
| Dimensions | 36 × 36 × 54 in |
| Brand | AIE, Binks |
| Condition | New |
| Gun Type | AA External Mix Gel Coat, LEL External Mix Gel Coat, AA External Mix Chopper, LEL External Mix Chopper, AA External Mix Wet Out, LEL External Mix Wet Out, LEL Internal Mix Chopper w/1" Mixer, LEL Internal Mix Chopper w/2" Mixer, LEL Internal Mix Wet Out w/1" Mixer, LEL Internal Mix Web Out w/2" Mixer |
| Mount Type | Wall Mount, Wall Mount with Boom, Small Cart, Cart, Mast & Boom, Cart & Mast |
| Catalyst Gauge | Catalyst Manifold, Catalyst Flow Meter |
| Heater | None, 110V, 220V |
| Siphon Kit | None, 5 Gallon, 55 Gallon |
| Hose Length | None, 25', 35', 50' |
